E312-16 Dissimilar & Unknown Stainless Welding Rod
High-chromium, high-nickel stainless electrode for dissimilar metals and unknown stainless alloys. Runs 40 to 165 amps on AC or DCEP, rated for flat, horizontal, vertical up, overhead. Amperage chart by diameter below.
E312-16 is a high-alloy stainless steel electrode under AWS A5.4 depositing approximately 29% chromium and 9% nickel. This chemistry produces a duplex microstructure with both austenite and ferrite phases. The high ferrite content (typically 25-50 FN) gives E312-16 exceptional resistance to hot cracking, making it the safest choice for welding unknown stainless steels, dissimilar stainless-to-stainless joints, and repair work where the base metal composition is uncertain. The -16 coating provides good AC and DCEP operation with smooth arc characteristics. E312-16 is widely used as a maintenance and repair electrode because it tolerates dilution from a wide range of base metals without cracking.
What This Means in Practice
E312-16 is the problem-solver rod for stainless welding. When you do not know what grade of stainless you are welding, or when you are joining dissimilar stainless grades to each other, E312-16 is the safest choice. Its 29Cr-9Ni chemistry produces a duplex (austenite + ferrite) microstructure that resists hot cracking better than any other common stainless electrode.

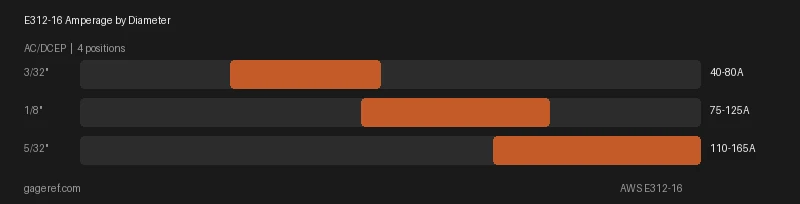

What Amps for E312-16?
| Diameter | Amperage Range |
|---|---|
| 3/32" (2.4 mm) | 40 - 80A |
| 1/8" (3.2 mm) | 75 - 125A |
| 5/32" (4 mm) | 110 - 165A |
Amperage by Individual Diameter
3/32 E312-16 Amperage
Set 3/32 E312-16 to 40 - 80 amps. Run AC or DCEP. This is the smallest available size. Best for vertical-up and overhead where you need a small, controllable puddle. Start around 60A.
1/8 E312-16 Amperage
Set 1/8 E312-16 to 75 - 125 amps. Run AC or DCEP. This is the most commonly used E312-16 size. Start at 100A for flat work, drop to 75-90A for vertical-up.
5/32 E312-16 Amperage
Set 5/32 E312-16 to 110 - 165 amps. Run AC or DCEP. Largest available diameter. High deposition for flat and horizontal fillet welds on thick plate. Requires 110A minimum to run properly.
E312-16 Suitability Scores
How well this electrode matches common applications. Not a quality rating. all AWS-certified electrodes meet their specification.
What Is E312-16 Good For?
Use E312-16 when the stainless steel grade is unknown, when joining dissimilar stainless grades, or when previous attempts with other stainless electrodes have resulted in cracking.
Excellent for maintenance and repair work on stainless equipment where base metal analysis is impractical.
Also used for hard-to-weld stainless castings and for buffer layers on dissimilar joints.
Where E312-16 Falls Short
Not appropriate for high-temperature service above 700F due to sigma phase embrittlement risk.
Not suitable for cryogenic service.
The weld deposit is not true austenitic stainless and has different corrosion properties than 308L or 316L.
More expensive than standard stainless electrodes.
Should not be used where specific corrosion resistance matching the base metal is required.
How E312-16 Handles
The Arc
Stiff, forceful arc with a pronounced crackle. The very high alloy content (29Cr-9Ni) makes this the most overalloyed common stainless rod. Arc stability is good but the rod does not feel as smooth as 308L.
Technique
Drag at 10-15 degrees. Keep beads short and straight. The duplex microstructure is more crack-resistant than fully austenitic rods, but do not test it with long, hot beads.
The Puddle
Viscous puddle that does not flow as freely as lower-alloy stainless rods. The bead profile is slightly convex. The slag is moderate and peels reasonably well.
When It Goes Wrong
E312-16 is a specialty rod. If you are reaching for it, you likely have a cracking problem with 309L or are welding an unknown stainless grade. It is not a general-purpose rod. Use it only when lower-alloy options fail.
Matching E312-16 Diameter to Your Steel
| Rod Diameter | Material Thickness | Application |
|---|---|---|
| 3/32" | 1/16" to 1/8" | Dissimilar and unknown grades, thin |
| 1/8" | 1/8" to 1/4" | Standard dissimilar and repair welding |
| 5/32" | 1/4" and up | Heavier dissimilar metal joints |
Shop Talk
E312-16 is the emergency rod. When you do not know what stainless grade you are welding, E312-16 works on almost everything. When E309L cracks on a dissimilar joint, E312-16 holds. Its overalloyed duplex structure resists hot cracking better than any common stainless electrode. Keep 5 pounds of 1/8 inch in the shop for the day when nothing else works. It is expensive and rarely needed, but when you need it, nothing else will do.
Bottom Line
This rod was made for repair work. Do not force it into production situations. E308L-16 covers what E312-16 cannot.
Setup & Safety Reference
How to Store E312-16
Stainless rutile (-16) electrode. Keep sealed and dry.
Max Atmosphere Exposure: 8 hours before reconditioning
Reconditioning Temperature: 300-350°F for 1-2 hours
Stainless rutile (-16) electrode. Keep sealed and dry. If exposed to moisture, bake at 300-350F for 1-2 hours.
Preheat & Interpass Temperature for E312-16
Preheat not required for the stainless side. E312-16 is used on unknown or dissimilar stainless joints. When joining to carbon steel, the carbon steel side may need preheat per AWS D1.1.
| Base Metal Thickness | Minimum Preheat (°F) |
|---|---|
| all thicknesses | Not required |
Maximum interpass temperature: 350°F
Source: AWS D1.6, manufacturer data
Fume Generation
Rating: Medium
Typical fume rate: 0.4-0.8 g/min
Very high chromium content. Hex chrome extraction mandatory.
Common Brand Names for E312-16
Look for Lincoln Electric Excalibur 312-16 at your supplier. 2 companies produce E312-16-classified rods.
| Manufacturer | Product Name | Notes |
|---|---|---|
| Lincoln Electric | Excalibur 312-16 | |
| ESAB | Arcaloy 312-16 |
Full Specs
| Property | Value |
|---|---|
| AWS Classification | E312-16 |
| Process | Stainless Stick (SMAW) |
| Polarity | AC, DCEP |
| Positions | flat, horizontal, vertical up, overhead |
| Penetration | medium |
| Coating Type | rutile (titania) |
| Tensile Strength | 95,000 psi |
| Yield Strength | 72,000 psi |
| Elongation | 22% |
| Base Metals | Unknown stainless steels, Dissimilar stainless joints, 300-series stainless, 400-series stainless, Stainless castings |
| Shielding Gas | Flux-shielded (no external gas) |
| Max Interpass Temp | 350°F |
| AWS Specification | AWS A5.4/A5.4M:2012 (R2022) |
Frequently Asked Questions
When should I use E312-16 instead of E308L-16?
Use E312-16 when you do not know the exact grade of stainless you are welding, when joining two different stainless grades together, or when previous welds with E308L-16 or E309L-16 have cracked. E312-16 has the highest ferrite content of common stainless electrodes, giving it the best hot-cracking resistance. It is the go-to problem-solver rod for difficult stainless repairs.
Can E312-16 be used at high temperatures?
No. E312-16 is not suitable for service temperatures above approximately 700F (370C). At higher temperatures, the high ferrite content can transform into sigma phase, causing severe embrittlement. For high-temperature stainless applications, use E310-16 instead.
Why is E312-16 called a maintenance rod?
E312-16 tolerates dilution from a wide range of stainless and carbon steel base metals without cracking. In maintenance and repair work, you often encounter unknown alloys, contaminated surfaces, or dissimilar metal joints. E312-16 handles all of these situations better than any other single stainless electrode, which is why repair shops and maintenance crews keep it on hand.
