E309L-16 Dissimilar Metal Rod: Stainless-to-Carbon Steel Welding Guide

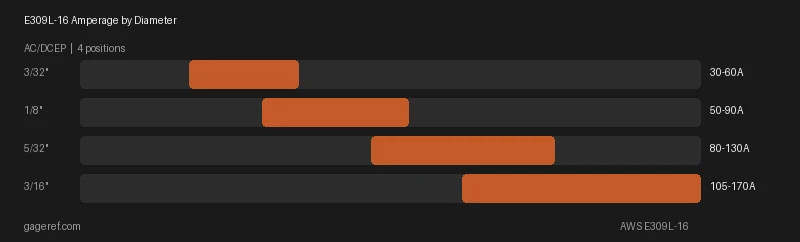

Dissimilar metal rod. Runs 30 to 170 amps on AC or DCEP, rated for flat, horizontal, vertical up, overhead. Amperage chart by diameter below.
E309L-16 is the standard electrode for joining stainless steel to carbon steel (dissimilar metal joints). The higher chromium and nickel content compared to E308L compensates for dilution from the carbon steel side, ensuring the weld deposit remains austenitic and corrosion-resistant. It also serves as the correct filler for 309 stainless base metal. Arc characteristics and slag behavior are similar to E308L-16: smooth arc, heavy self-peeling slag, clean bead profile. Runs on AC or DCEP.
What This Means in Practice
E309L-16 means: E (electrode) + 309 (309 stainless chemistry, higher Cr/Ni than 308) + L (low carbon) + 16 (rutile coating, AC/DCEP). The 309 chemistry is designed to tolerate dilution from carbon steel while keeping the weld austenitic.
What Amps for E309L-16?
| Diameter | Amperage Range |
|---|---|
| 3/32" (2.4 mm) | 30 - 60A |
| 1/8" (3.2 mm) | 50 - 90A |
| 5/32" (4 mm) | 80 - 130A |
| 3/16" (4.8 mm) | 105 - 170A |
Amperage by Individual Diameter
3/32 E309L-16 Amperage
Set 3/32 E309L-16 to 30 - 60 amps. Run AC or DCEP. This is the smallest available size. Best for vertical-up and overhead where you need a small, controllable puddle. Start around 45A.
1/8 E309L-16 Amperage
Set 1/8 E309L-16 to 50 - 90 amps. Run AC or DCEP. This is the most commonly used E309L-16 size. Start at 70A for flat work, drop to 50-63A for vertical-up.
5/32 E309L-16 Amperage
Set 5/32 E309L-16 to 80 - 130 amps. Run AC or DCEP. Production size for flat work. If spatter increases above 117A, check your arc length.
3/16 E309L-16 Amperage
Set 3/16 E309L-16 to 105 - 170 amps. Run AC or DCEP. Largest available diameter. High deposition for flat and horizontal fillet welds on thick plate. Requires 105A minimum to run properly.
E309L-16 Suitability Scores
How well this electrode matches common applications. Not a quality rating. all AWS-certified electrodes meet their specification.
What Is E309L-16 Good For?
Joining stainless steel to carbon steel, the primary use case.
Also for 309 stainless base metal, overlay cladding of carbon steel with a stainless layer, and as a buffer layer before applying 308L on dissimilar joints.
Common in food processing plants where stainless components attach to carbon steel structures.
Where E309L-16 Falls Short
The weld metal is not as corrosion-resistant as 308L in pure stainless environments because of the dilution design.
Not a replacement for E308L on 304-to-304 joints.
Same heat management and interpass temperature concerns as all stainless welding.
Higher cost than carbon steel consumables.
E309L-16 Under the Hood
What You Hear and See
Similar to E308L-16 but with a slightly stiffer arc due to the higher alloy content. Runs well on AC or DCEP. The arc is stable and moderately quiet.
Running It
Same as E308L-16. Drag at 10-15 degrees. On dissimilar joints, direct the arc toward the carbon steel side to equalize heat input, since carbon steel conducts heat away faster than stainless. Let the puddle wash across to the stainless side to minimize dilution.
Puddle and Slag
Slightly more viscous puddle than E308L-16 because of the higher chromium and nickel content. The bead wets out well but is a bit slower to flow. Slag is thin and self-peeling.
If You Are Struggling
On stainless-to-carbon joints, if you see rust staining at the joint line within weeks, the dilution exceeded the alloy threshold. You directed too much heat at the carbon steel side and pulled too much carbon into the weld. Reduce heat input and let the puddle wash across rather than driving into the carbon.
Which Size E309L-16 to Use
| Rod Diameter | Material Thickness | Application |
|---|---|---|
| 3/32" | 1/16" to 1/8" | Thin dissimilar metal joints |
| 1/8" | 1/8" to 1/4" | Standard dissimilar metal welding |
| 5/32" | 1/4" and up | Heavier stainless-to-carbon joints |
What the Spec Sheet Leaves Out
E309L-16 is the bridge rod between stainless and carbon steel. Its 23% chromium and 13% nickel content is higher than the 304 stainless it joins. That extra alloy compensates for dilution from the carbon steel side. Without it, the weld metal drops below the 10.5% chromium threshold and loses corrosion resistance. Every stainless fabrication shop stocks E309L-16. It is the first rod you grab for any stainless-to-carbon connection.
Bottom Line
Repair work is where E309L-16 belongs. Beginner is not its job. When E309L-16 is wrong for the job, reach for E316L-16.
Setup & Safety Reference
How to Store E309L-16
Stainless rutile (-16) electrode. Keep sealed and dry.
Max Atmosphere Exposure: 8 hours before reconditioning
Reconditioning Temperature: 300-350°F for 1-2 hours
Stainless rutile (-16) electrode. Keep sealed and dry. If exposed to moisture, bake at 300-350F for 1-2 hours. Less moisture-sensitive than low-hydrogen rods but still benefits from dry storage.
Preheat & Interpass Temperature for E309L-16
Preheat not required for the stainless side. When joining stainless to carbon steel, the carbon steel side may require preheat per AWS D1.1 based on thickness.
| Base Metal Thickness | Minimum Preheat (°F) |
|---|---|
| all thicknesses | Not required |
Maximum interpass temperature: 350°F
Source: AWS D1.6, manufacturer data
Fume Generation
Rating: Medium
Typical fume rate: 0.4-0.8 g/min
Stainless stick. Hex chrome hazard.
Common Brand Names for E309L-16
Look for Lincoln Electric Excalibur 309/309L-16 at your supplier. 2 companies produce E309L-16-classified rods.
| Manufacturer | Product Name | Notes |
|---|---|---|
| Lincoln Electric | Excalibur 309/309L-16 | |
| ESAB | Arcaloy 309L-16 |
Full Specs
| Property | Value |
|---|---|
| AWS Classification | E309L-16 |
| Process | Stainless Stick (SMAW) |
| Polarity | AC, DCEP |
| Positions | flat, horizontal, vertical up, overhead |
| Penetration | medium |
| Coating Type | rutile (titania) |
| Tensile Strength | 80,000 psi |
| Yield Strength | 55,000 psi |
| Elongation | 30% |
| Base Metals | 309 stainless steel, 304 to carbon steel (dissimilar), stainless to carbon steel overlay |
| Shielding Gas | Flux-shielded (no external gas) |
| Max Interpass Temp | 350°F |
| AWS Specification | AWS A5.4/A5.4M:2012 (R2022) |
E309L-16 Questions
When do you use E309L-16 instead of E308L-16?
Use E309L-16 when joining stainless steel to carbon steel (dissimilar metal joints), or when welding 309 stainless base metal. The higher chromium and nickel content prevents cracking at the dissimilar metal interface.
Can E309L-16 be used on 304 stainless?
Yes, but E308L-16 is the better match for 304 stainless to 304 stainless joints. E309L-16 is over-alloyed for that application. It works but wastes money and provides no benefit.
What is the L in E309L-16?
L means low carbon, 0.03% maximum. Low carbon reduces the risk of carbide precipitation during welding, which prevents intergranular corrosion in service.
